PRODUCT RANGE

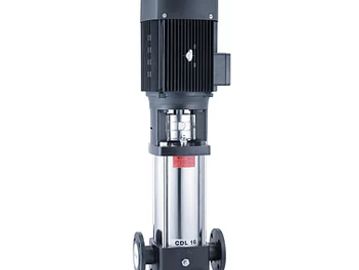

CDL Series - Vertical Multistage Centrifugal Pump
CDL Series is a sheet metal Stainless Steel Vertical Multistage Centrifugal Pumps offered by CNP. The pumps are driven by standard electrical face mounted motor up to 7.50 kW and flange mounted for ratings higher than 7.5 kW. CDL Series pumps are available with Inlet-Outlet and pump head in cast iron material. Pumps are available in single Phase as well as three Phase.
Performance Range :-
Flow Range (Q)0.4-240.0 m³/hrDelivery HeadMax. 305 mtr (30.5 Bar)Liquid Temperature-15 °C~ + 70 °CMOCSS-30

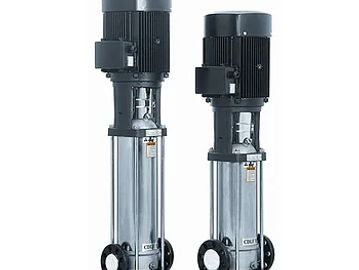

CDLF Series - Vertical Multistage Centrifugal Pump
CDLF Series is a sheet metal Stainless Steel Vertical Multistage Centrifugal Pumps offered by CNP. The pumps are driven by standard electrical face mounted motor up to 7.50 kW and flange mounted for ratings higher than 7.5 kW. CDLF Series Pumps are available in complete SS304 and SS316 material. Pumps are available in single Phase as well as three Phase.
Performance Range :-
Flow Range (Q)0.4-240.0 m³/hrDelivery HeadMax. 305 mtr (30.5 Bar)Liquid Temperature-15 °C~ + 70 °CMOCSS-304 and SS-316Spee

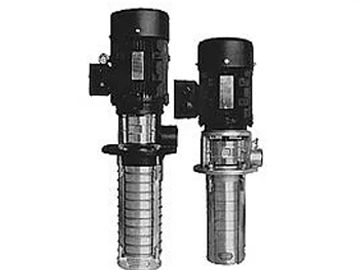

CDLK/F Series Immersion Multistage Centrifugal Pump
These pumps are compact, highly reliable, low maintenance and easy to install. This immersion multistage pump has Flow Range (Q) 0.4-55.0 M3/hr and Liquid Temperature -15°C - +120°C.
Performance Range :-
Flow Range (Q)0.4-55.0 M3/hrDelivery HeadMax. 305 mtr (30.5 Bar)Liquid Temperature-15°C~+120°CSpeed (n)2900 rpmPower (P)up to 45 kWMOCSS-304 and SS-316

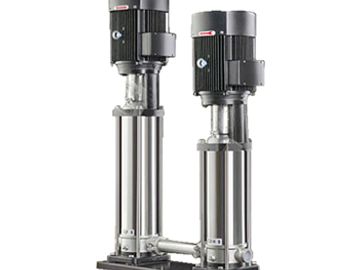

CDLF+CDH Series High Pressure Pump
Specially designed and developed, CDH Pump is connected in series with CDLF pump to increase the pressure up to 48 bar (Max). Stay bolts and outer casing are specially developed to bear high inlet pressure. Compared to CDLF, CDH pump has a reverse rotating direction; pump flow is also in reverse direction. This way, the mechanical seal has to face only the inlet pressure.
Performance Range :-
Flow Range (Q)0.4 - 28.0 m³/hDelivery Head (H)Max. 460 mtr (46 Bar)Liquid Temperature-15 °C~ + 70 °CInlet

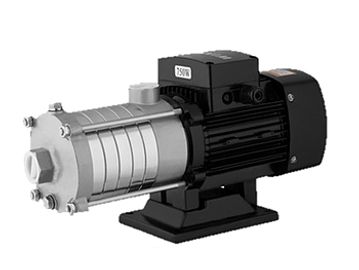

CHL Series - Horizontal Multistage Centrifugal Pump
Horizontal Multi Stage Pumps have compact design, low-noise and long service life. They are easy to install and operate. Energy efficient Horizontal Multistage design with stainless steel stamped-welded impeller and diffusers.
Pumps are supplied with single phase or three phase motors. Single phase motor is available up to 2.2 kW. Motors are IE 2, Class F and IP55 as a standard.
Standard supply for liquid temperature up to 70℃, high temperature pumps are available on request.
Performance Range :-
Fl

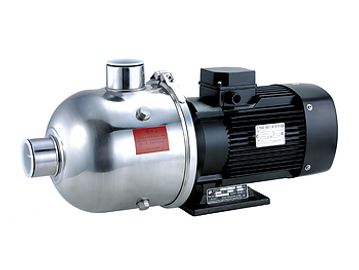

CHLF Series Horizontal Multistage Centrifugal Pump
Horizontal Multi Stage Pumps has compact design Low-noise and long service life, Easy to install and operate energy efficient Horizontal multistage design with stainless steel stamped –welded impeller and diffuser.
Pumps are supplied with single phase or three phase motors. Single phase motor is available up to 2.2 kW. Motors are IE 2, Class F and IP55 as a standard.
Standard supply for liquid temperature up to 700, high temperature pumps are available on request.60 Hz pumps are also available on
